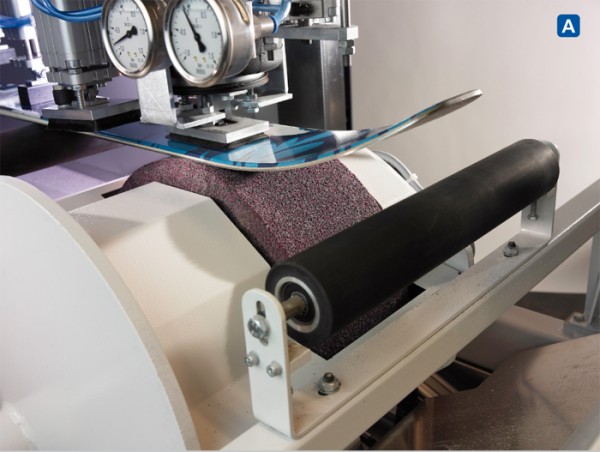

BASE-UNIT
The equipment is run over the stone to establish a flat and even running surface from tip to tail. The resulting base structure is the foundation for the fine-tuning that follows.

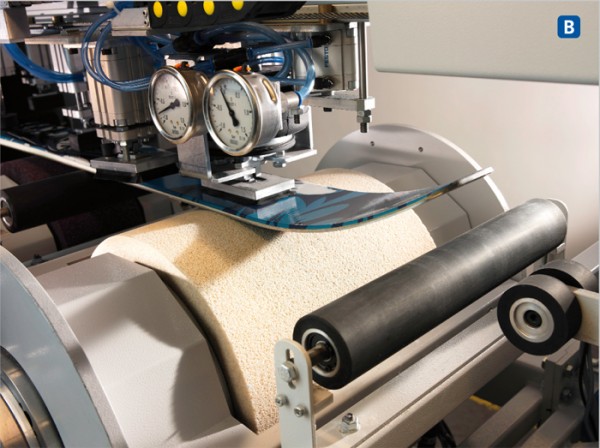

DESIGN-UNIT
A base structure, designed to suit the customer’s wishes and the snow conditions, is then worked into the base surface. Pressure regulators ensure that a consistent coating (grind) is maintained from tip to tail. When viewed in cross-section, the base profile displays a vivid structure that results in optimal gliding qualities.

SIDELINE-UNIT
To ensure the same prerequisites for both left and right turns, the edges on both sides must be perfectly matched. For this reason, our machines allow both side-edges to be tuned simultaneously. Not only that, our high-tech procedure is designed for individuality – that’s why the side-edge level is easily adjustable.

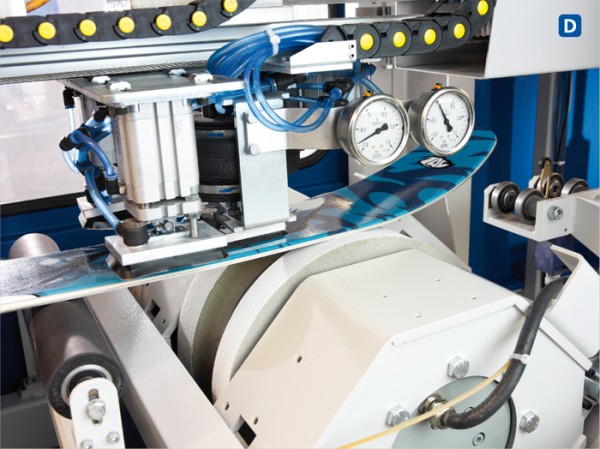

BASELINE-UNIT
The most critical step in the tuning process is the precision polishing of the base edges. A smooth and polished edge enables easy turning and good grip in all snow conditions.


Technical Data
Processing width: 50 – 320 mm
Processing length: 900 – 2200 mm
Use per season: upwards of 5000 services
Electrical connection: 6 kW, Abs. 32 A
Weight: 4000 kg
Capacity per hour: up to 45 paires of skis / 20 snowboards
